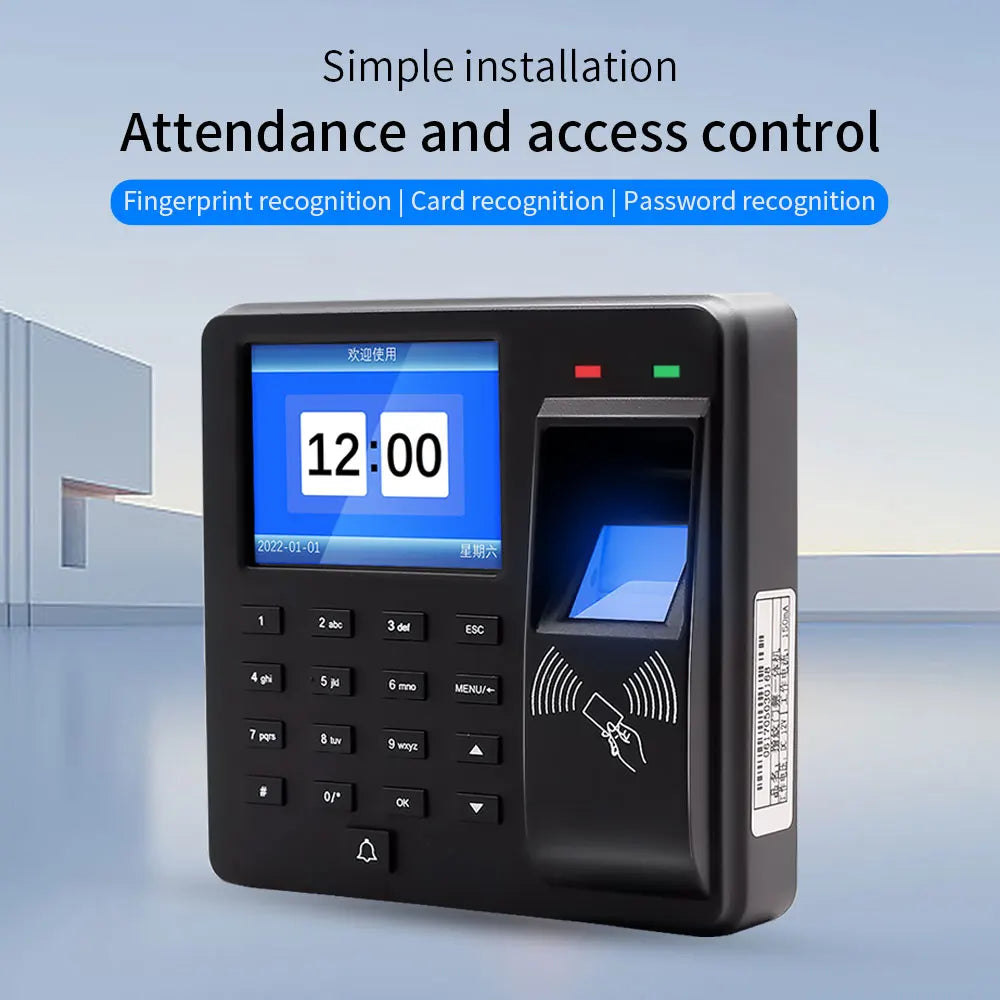

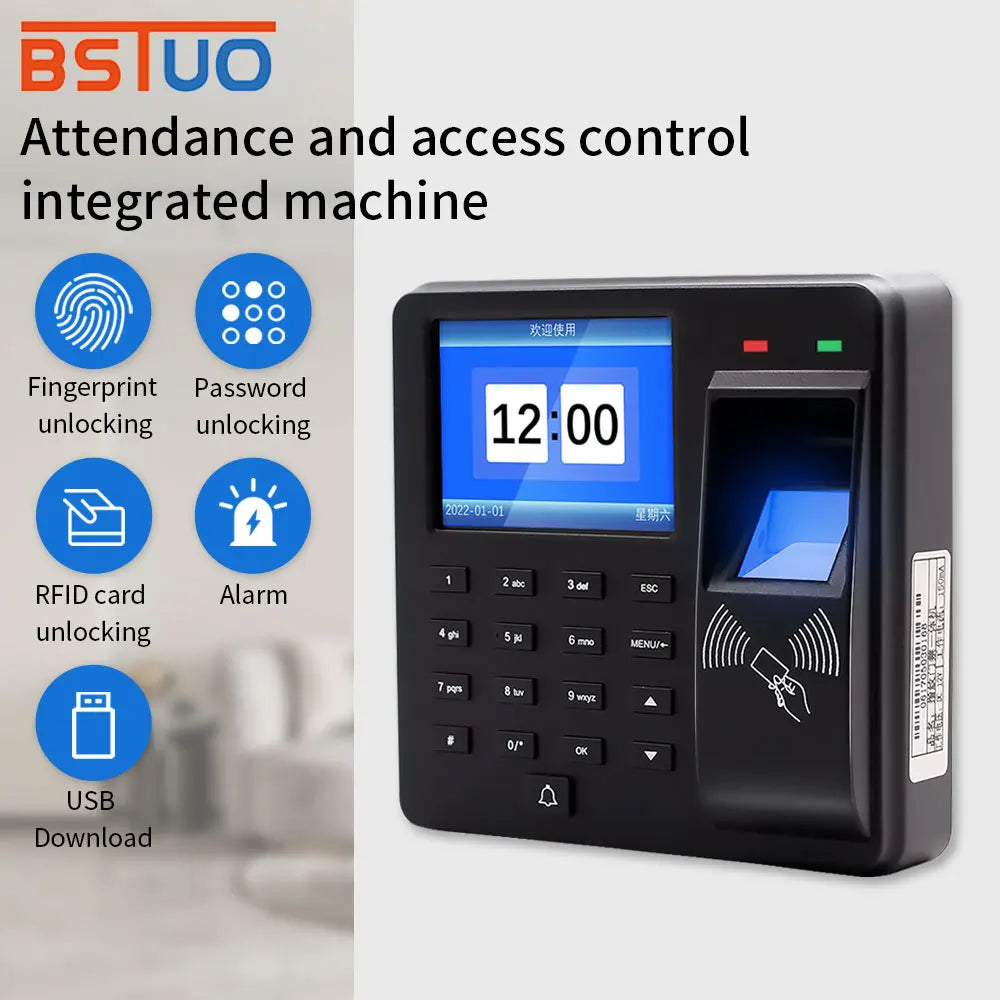

All-in-one attendance + access control with fingerprint / 125 kHz ID card / PIN. Works off-network with USB (U-disk) report export, so no PC software is required. Stores up to 1,000 users and 100,000 records. Includes relay output for door locks and Wiegand 26/34 I/O for system integration.

Key Features

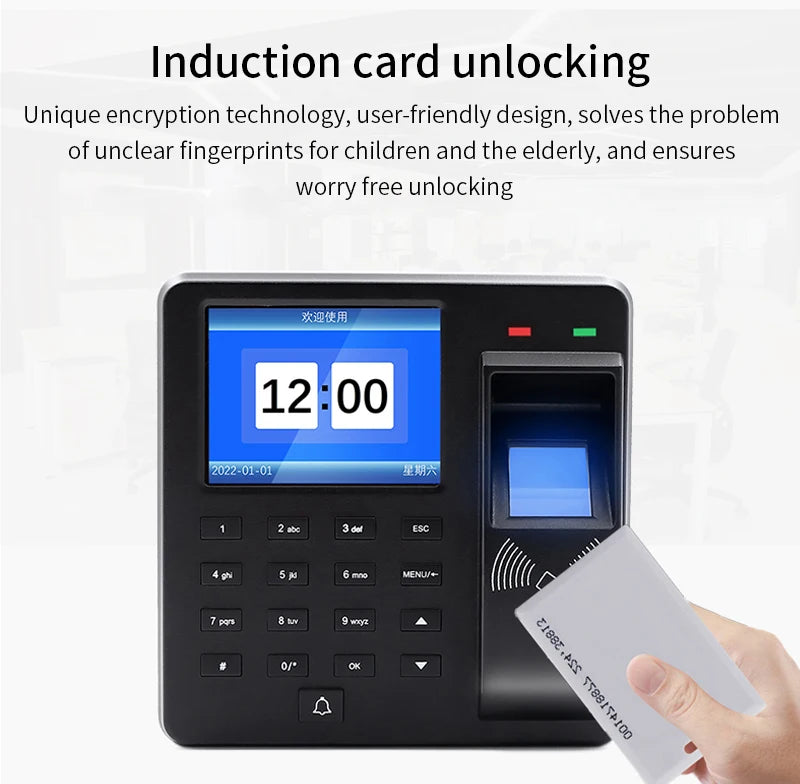

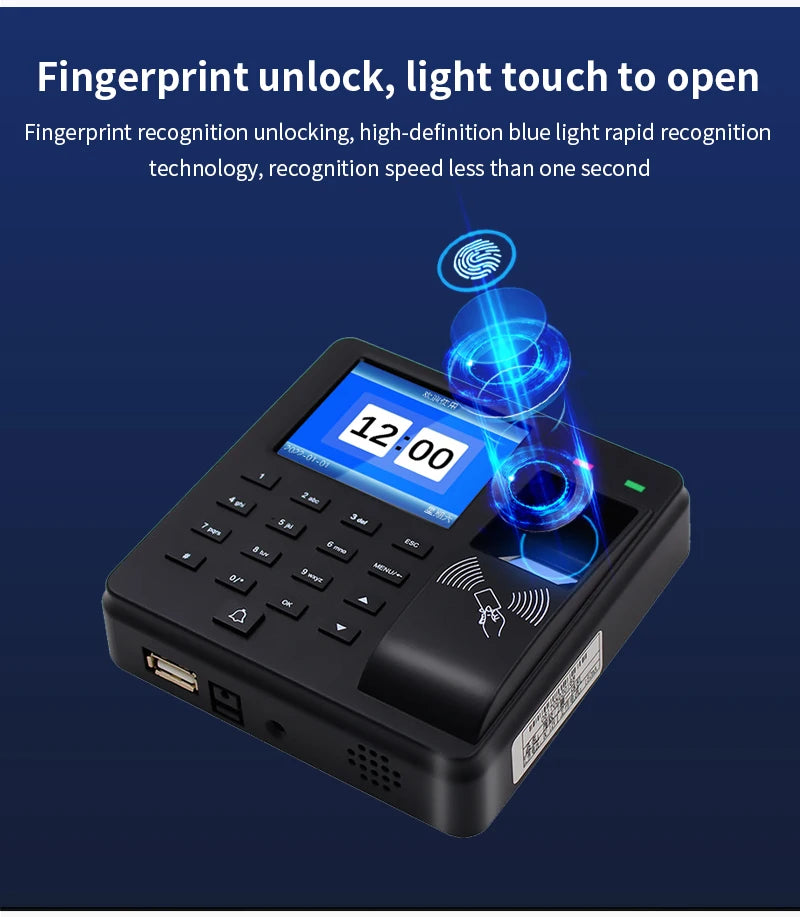

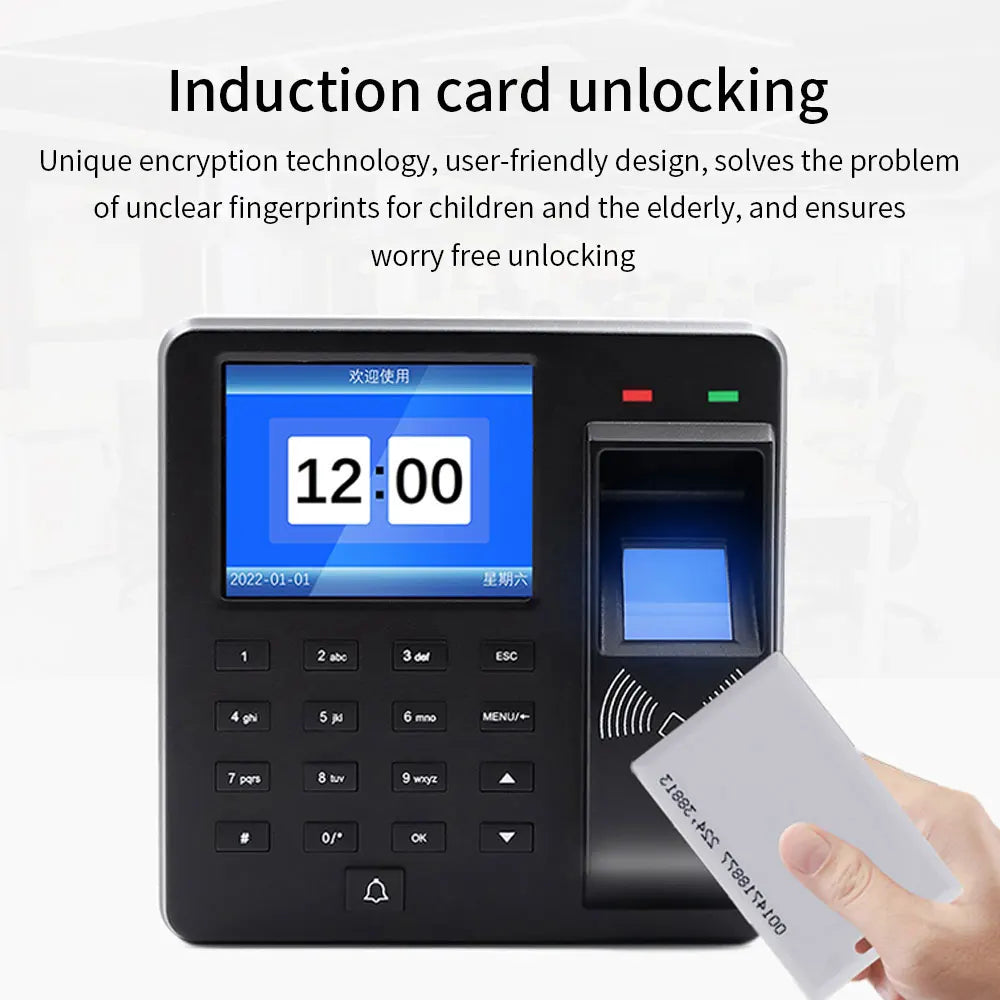

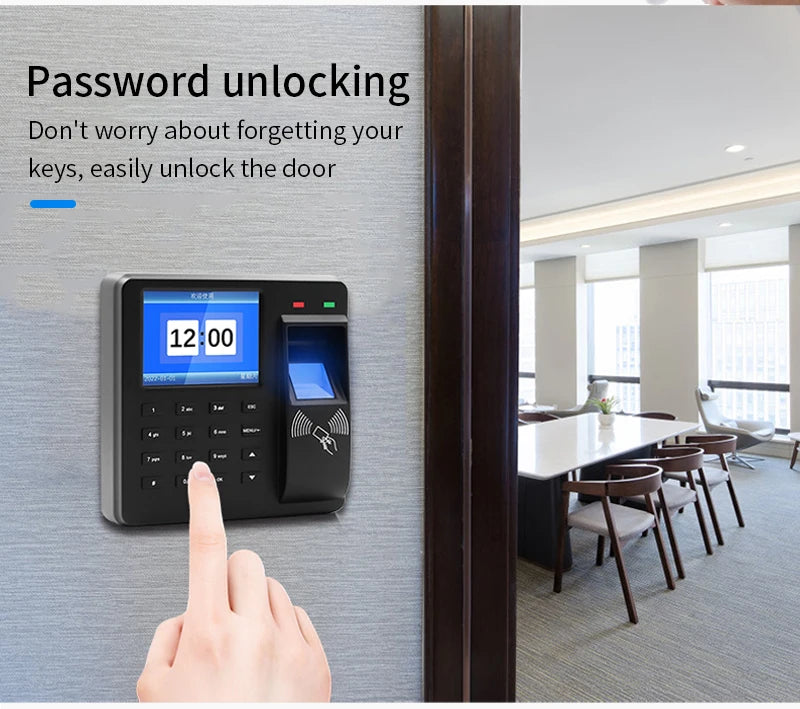

• 3-in-1 ID: Fingerprint, ID card (125 kHz), or PIN

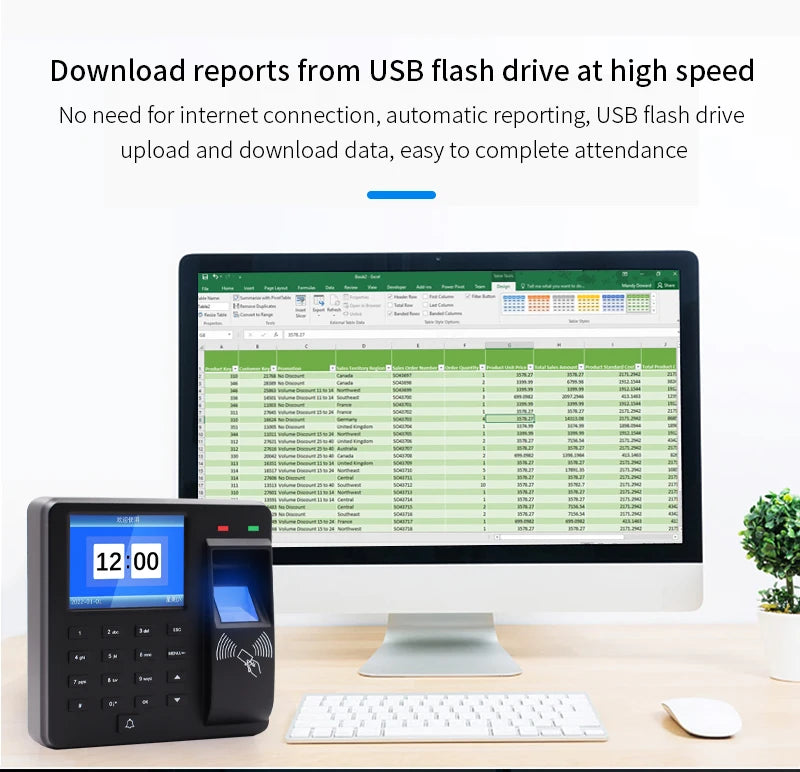

• No software needed: Generate/export attendance tables via USB flash drive

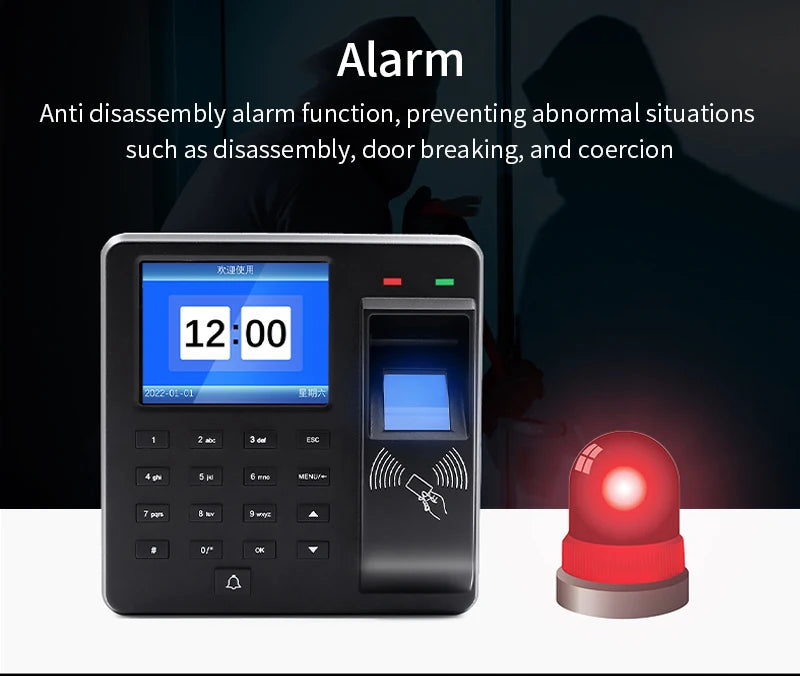

• Access control ready: Relay output for lock, door sensor, exit button, alarm

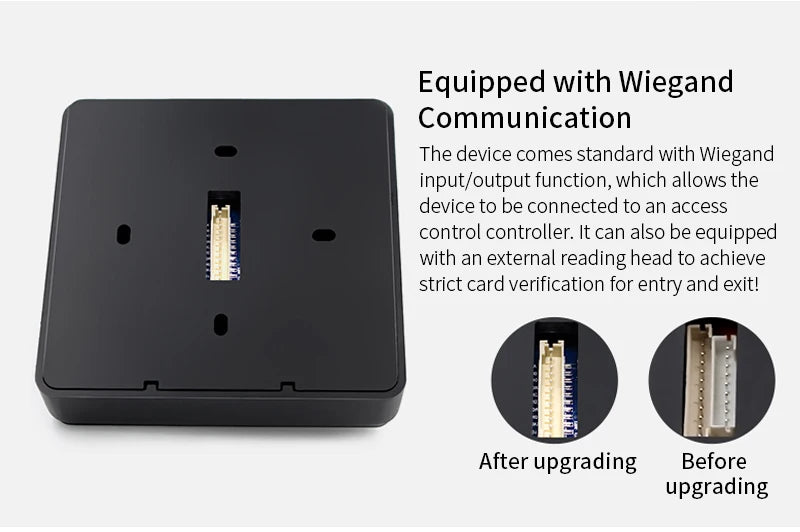

• Integration: WG26/WG34 input/output

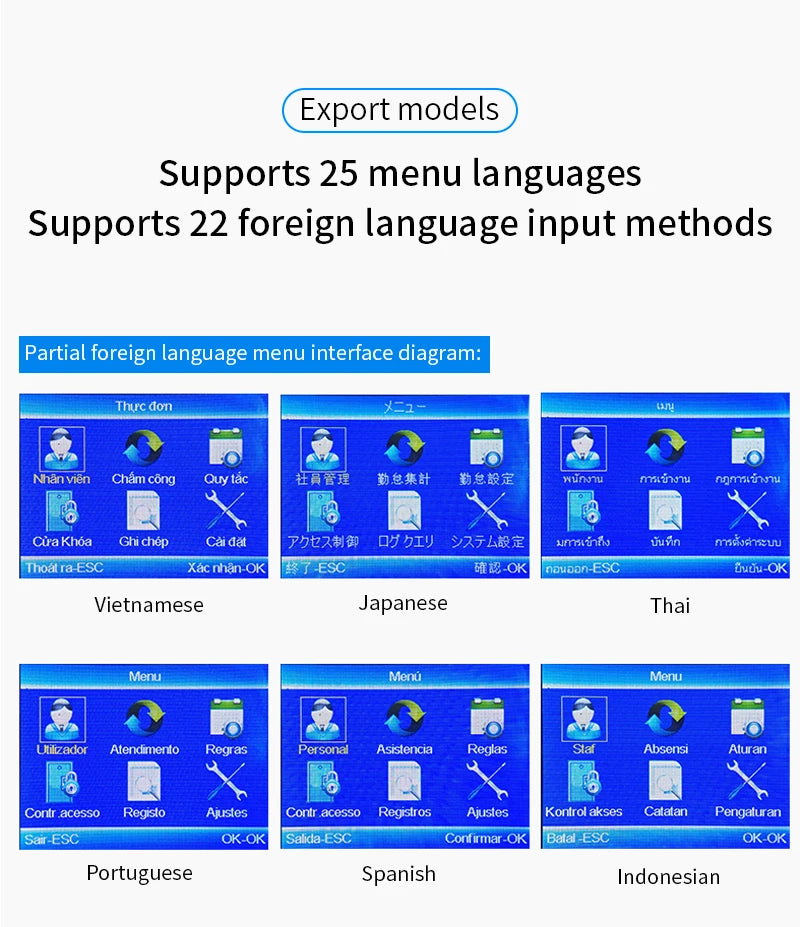

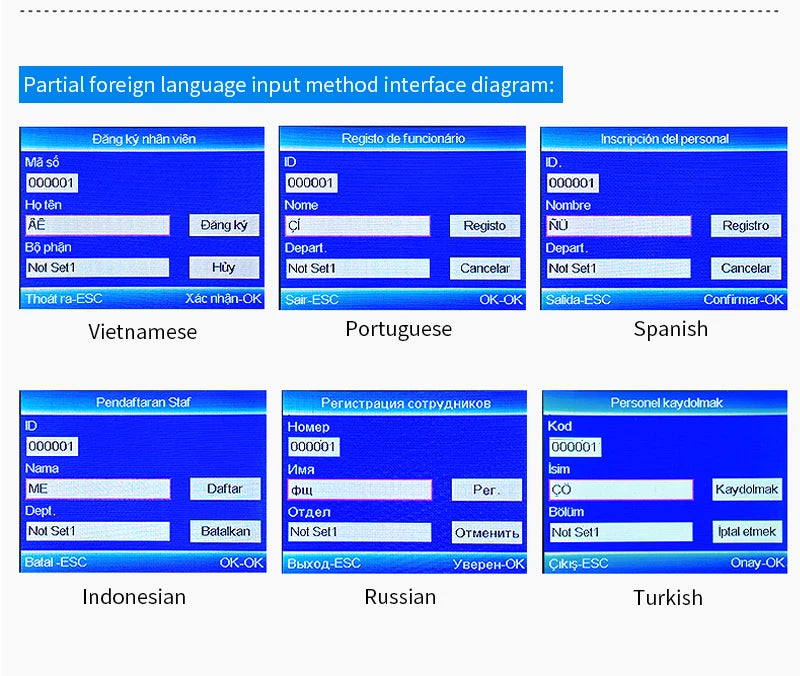

• Multi-language UI: English, Spanish, Portuguese, etc.

• User capacity: 1,000 users | Logs: 100,000 events

• Easy setup: Menu path Access Ctrl for schedules, departments, rules

• Reset/restore: Quick default restore for troubleshooting

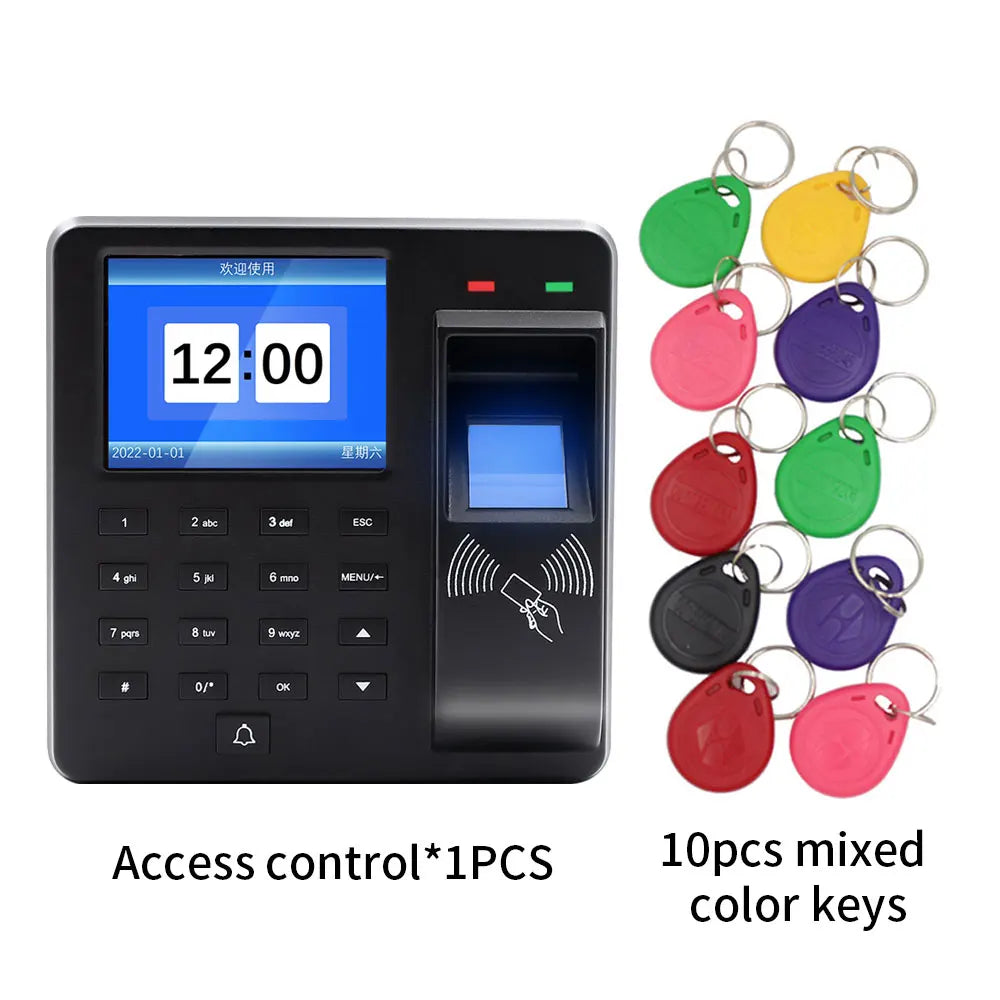

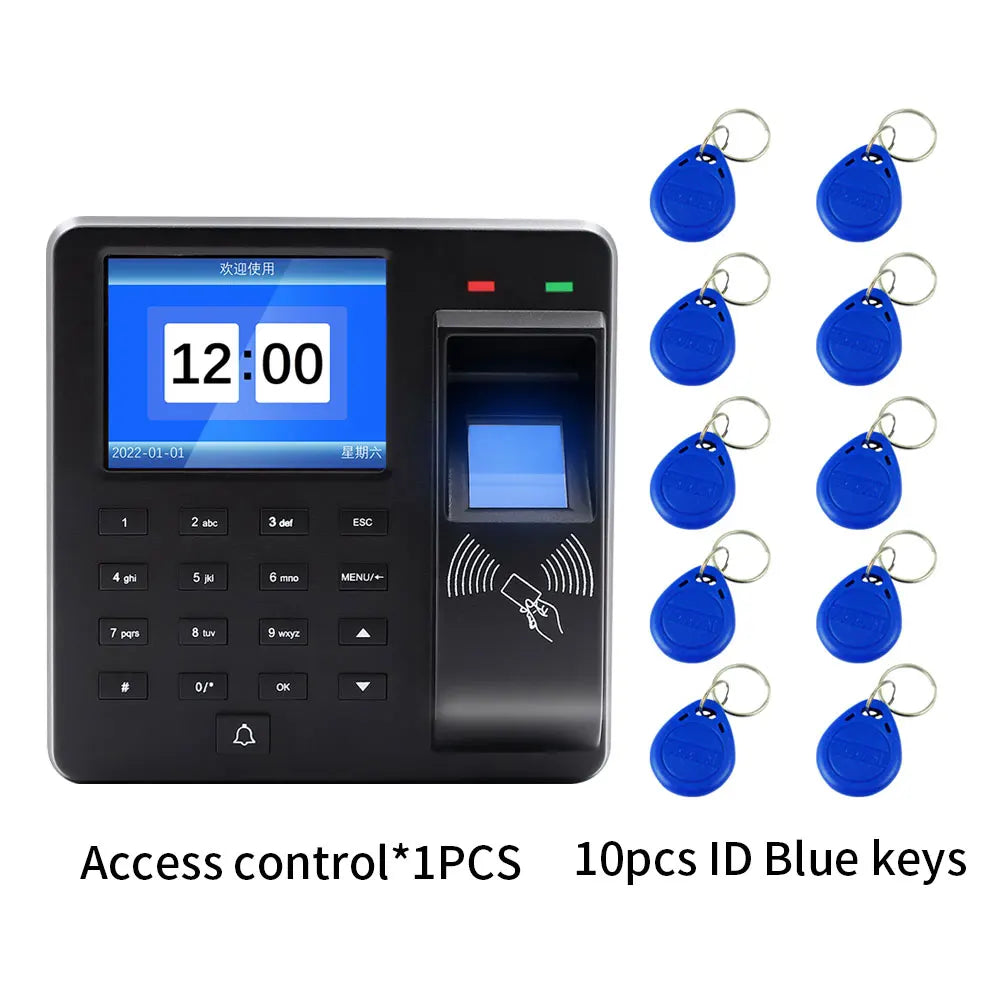

What’s in the Box

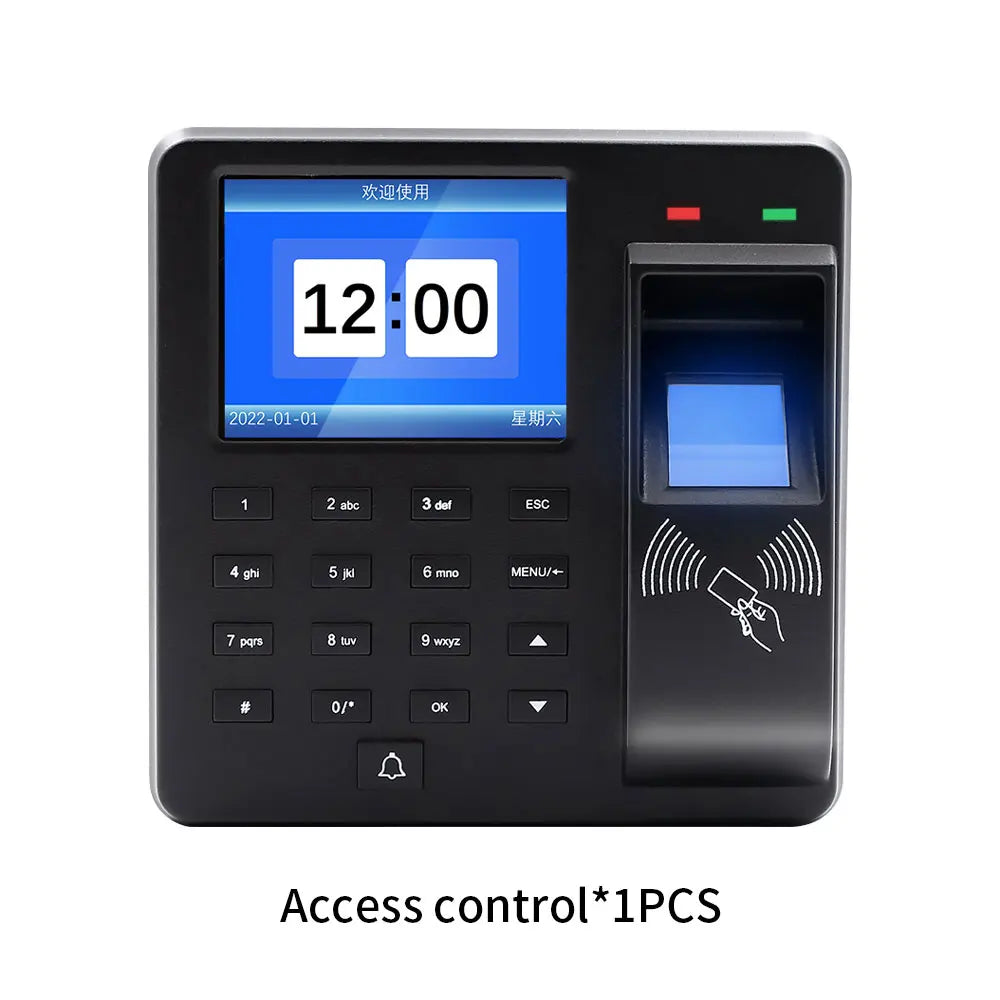

• M10H terminal (2.4" TFT LCD)

• Mounting kit & wiring pigtail

• Quick guide (language varies)

Tech Specs

• Model: M10H | Brand: Asia-Teco

• Display: 2.4" TFT color screen

• IDs: Fingerprint / 125 kHz ID card / PIN

• Records: 100,000 | Users: 1,000

• I/O: Relay output; Wiegand 26/34 in/out

• Download: U-disk (USB) attendance export

• Power: DC 12 V (adapter/lock power not always included)

• Mode: Off-network (stand-alone)

• Certs/Notes: High-concern chemicals: None | Origin: Mainland China

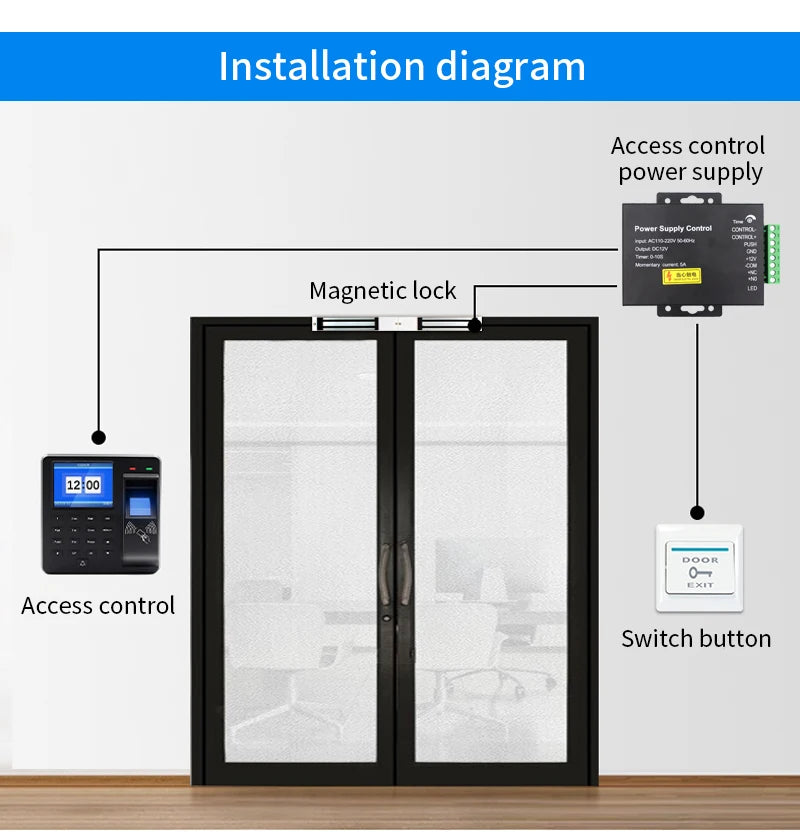

Install Notes

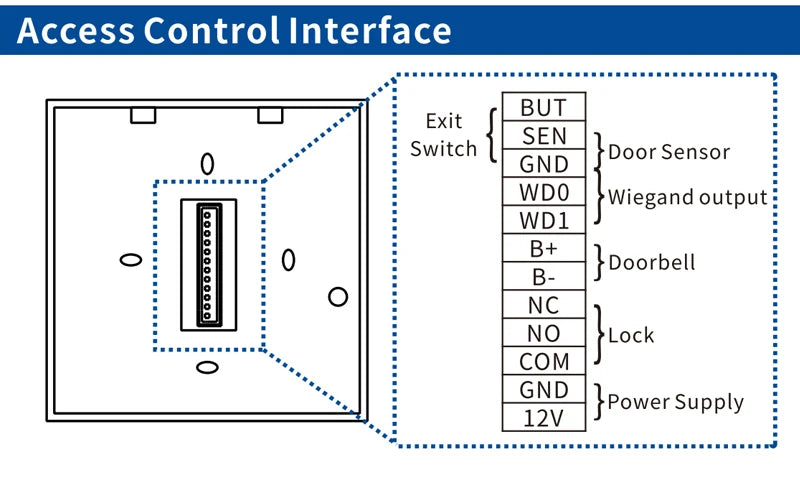

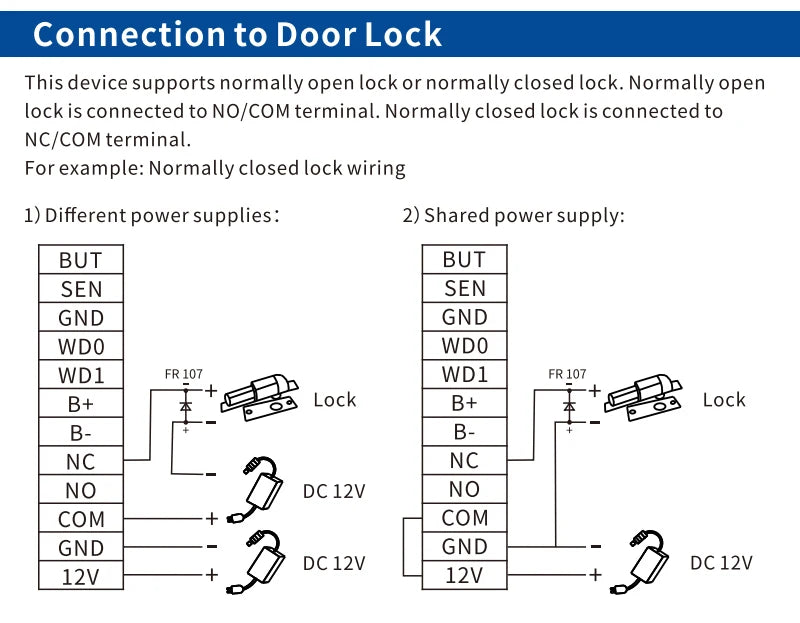

• Provide stable 12 VDC to the terminal and appropriate power to the electric strike/mag lock (often requires separate PSU).

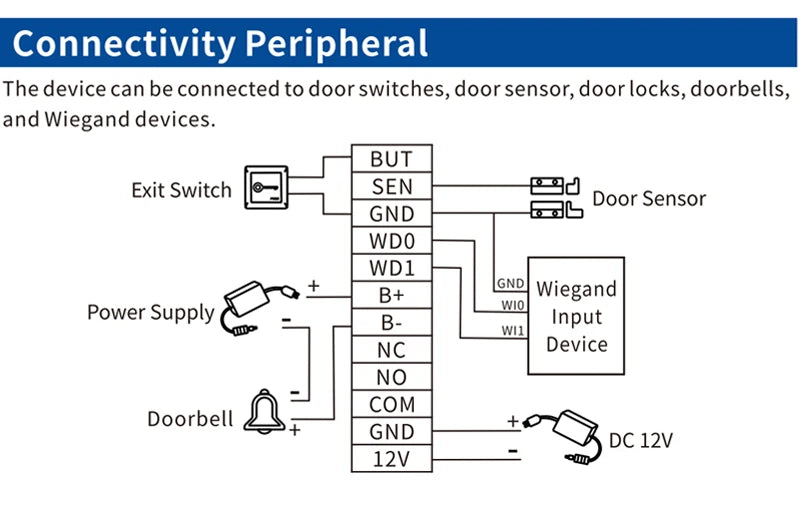

• Wire door sensor, exit button, and alarm as needed; set lock mode (NO/NC) in menu.

• Use U-disk to import staff data and export reports.

• For emergencies, enable public PIN (master/open code) per your policy.

Use Cases
Small offices • Warehouses • Clinics • Workshops • Residential gates
